Installation of a 11KV overhead line feeding TMF for DYNATEC MADAGASCAR S.A

Client informations

Job Name/Reference

Installation of a 11kV overhead line feeding TMF

Place of execution

DYNATEC MADAGASCAR plant site to TMF,
Toamasina – Madagascar

Client Name

DYNATEC MADAGASCAR S.A

Client adress

DYNATEC MADAGASCAR Amboakarivo site, BP.419 Amboakarivo, Toamasina- Madagascar

Committed staff

Management

Tantely R. (Project Manager)

Number of personnel worked in the project

Project duration

56 799 hours

Specialized man power

Surveyor, Line Assembler, Crane Operator

DYNATEC MADAGASCAR_Install 11KV overhead line feeding TMF

Installation of a 7km long 11kV electrical power transmission line to supply the TMF (Tailings Management Facility) from the Ambatovy thermal power plant.

Lost Time Injury (LTI) recorded : 00

Start date (month/year)

August 2018

End date (month/year)

January 2019

Topographic study for the layout of the new MV line along the Ambatovy pipeline easement.

Clearing and creation of access roads for trucks.

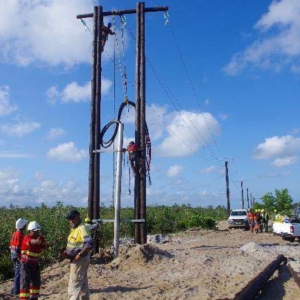

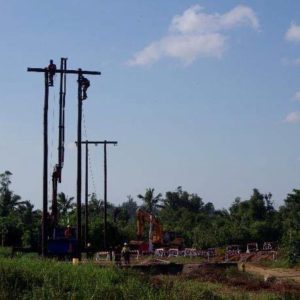

Assembly and installation of wooden poles.

Pulling of 148mm² Almelec phase conductor cables and 34.4mm² ground wires.

Installation of 4 aerial-to-underground connections using 240mm² XLPE 3-core cables.

Installation of an optic fiber cable along the new line.

Installation of fault detectors at 9 control points with data transmitters.

Grounding of metal parts, ground wires and surge arresters.

Connection of the line to substations.

Design, manufacturing and installation of anti-climbing fittings.

Securing the installation until project handover.
